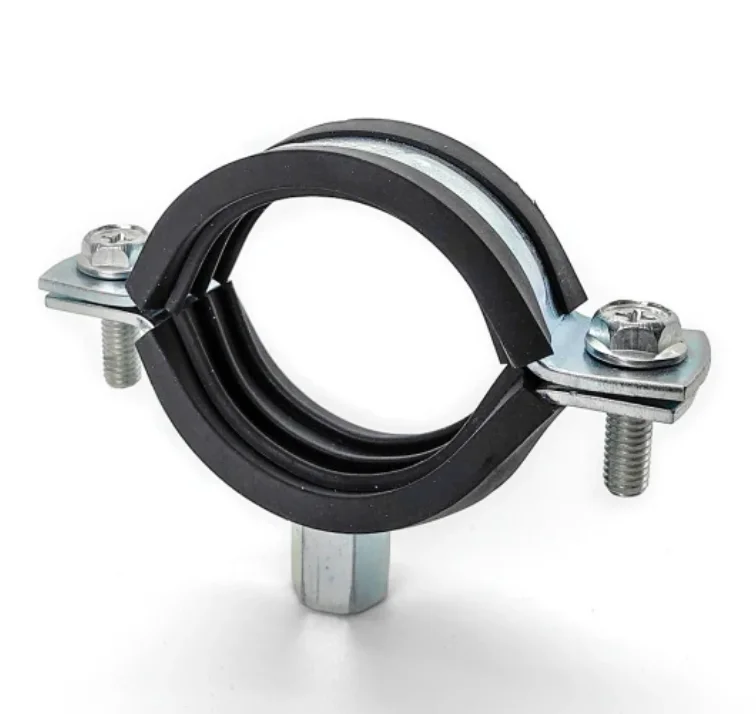

Rubber Lined Split Clamp (Cushioned Pipe Clamp) – Bulk Supply
If you need a strong clamp that holds pipes tight without damaging the pipe, a Rubber Lined Split Clamp is the right choice. It gives a firm grip, reduces vibration, and helps lower noise in running pipelines.
At Ferry International, we supply rubber lined split clamps in multiple sizes for HVAC, plumbing, fire piping, industrial lines, and general pipe support works. Best for bulk orders and regular project supply.
A rubber lined split clamp is a two-part pipe clamp with a rubber layer inside.
It is used to support and fix pipes on walls, ceilings, channels, and brackets.
The rubber lining helps in:
Industrial buyers don’t want “cheap clamps” that bend, rust fast, or damage pipes. You want:
Ferry International focuses on project-friendly bulk supply, consistent sizing, and product that works in real site conditions.

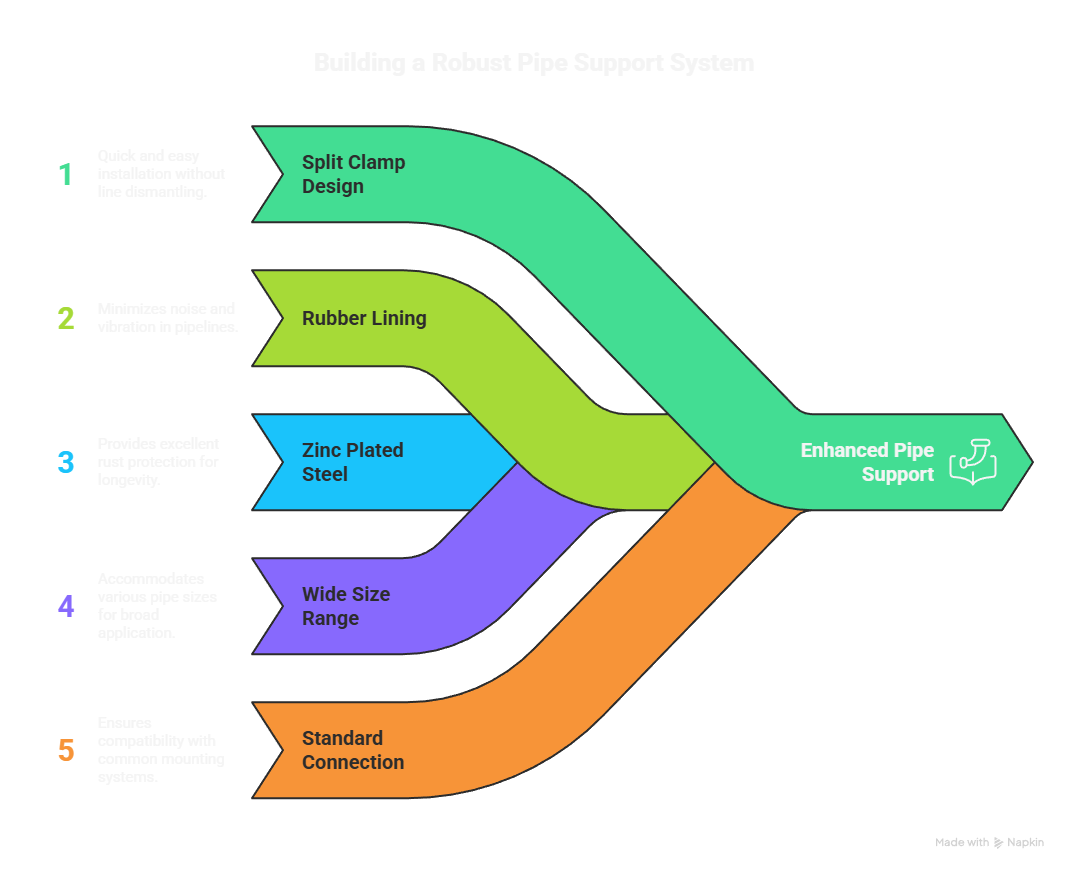

You can open and close the clamp easily. No need to dismantle the full line.
Reduces vibration impact and helps prevent noise in HVAC/utility pipelines.
White zinc plating adds protection against normal corrosion in indoor and semi-exposed use.
Supports many pipe outer diameters (OD) used in plumbing, HVAC, and industrial piping.
Comes with M8/M10 connection nut, so it fits common threaded rods and mounting systems.
These clamps are widely used in:
If you want less vibration + cleaner pipe support, this clamp is a practical choice.
Don’t guess. Measure once.
Note: Measurements are subject to tolerance.
| Size (Inches/mm) | Range (mm) | Connection Nut |
|---|---|---|
| 3/8 | 17–20 | M8/M10 |
| 1/2 | 20–25 | M8/M10 |
| 3/4 | 26–30 | M8/M10 |
| 1 | 32–36 | M8/M10 |
| 1 1/4 | 38–44 | M8/M10 |
| 1 1/2 | 47–51 | M8/M10 |
| 53–58 mm | 53–58 | M8/M10 |
| 2 | 60–64 | M8/M10 |
| 65 mm | 63–67 | M8/M10 |
| 2 1/2 | 74–80 | M8/M10 |
| 81–86 mm | 81–86 | M8/M10 |
| 3 | 87–92 | M8/M10 |
| 107–112 mm | 107–112 | M8/M10 |
| 4 | 113–118 | M8/M10 |
| 6 | 160–167 | M8/M10 |
| 8 | 200–212 | M8/M10 |

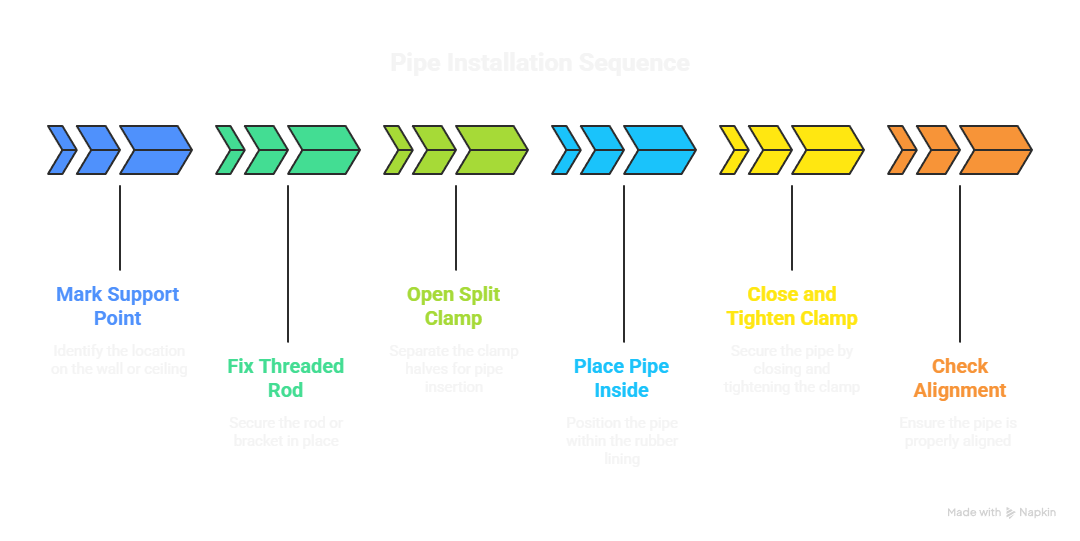

Mark the support point on wall/ceiling/channel
Tip: Don’t over-tighten. Tight enough to hold the pipe firmly is correct.
If you’re buying for projects, these are the common failure reasons:
A clamp is a small part, but if it fails, the full line vibrates, leaks, or makes noise.
It helps reduce vibration and noise and protects the pipe surface from scratches.
Yes. Rubber lining is useful in HVAC lines to reduce vibration and sound.
Standard M8/M10 connection nut (as per the size chart).

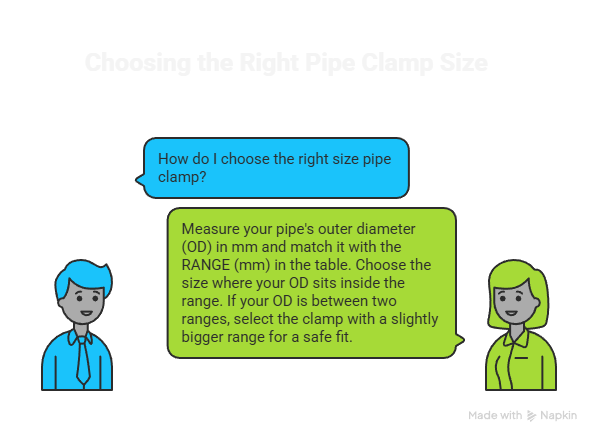

Measure pipe outer diameter (OD) and match it with the range (mm).
Yes, it’s used in many industrial utility lines where stable pipe support is needed.
It has white zinc plating for corrosion protection. For heavy outdoor/corrosive environments, ask for suitable options.
Yes, the rubber lining reduces noise created by vibration and movement.
Yes. Split design makes install/remove easier.
From small sizes like 3/8 (17–20 mm) up to 8 (200–212 mm) (see table).
Yes, with correct support spacing and proper mounting.
Yes, we focus on bulk orders and regular project supply.
Share delivery location and quantity; we’ll confirm dispatch plan.
Call: 011-41410882
