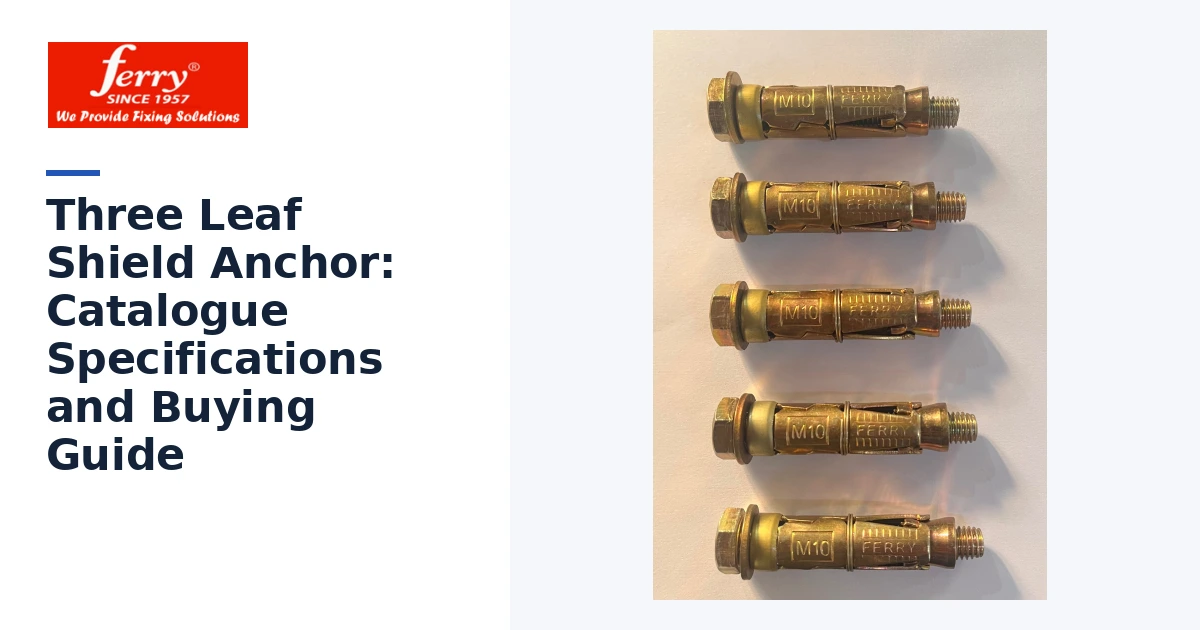

Our Three Leaf Shield Anchor catalogue documents five sizes, from M6 x 50 to M16 x 125. Each size has its own fixing length, hole size, shield length, fixture-hole diameter and application torque for concrete, so read the values across the same row when preparing a project or bulk enquiry.

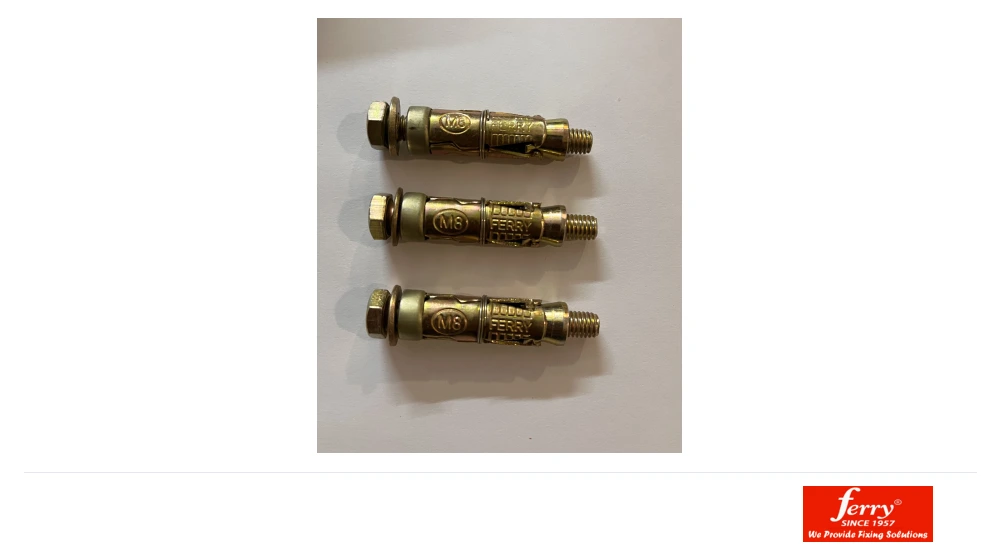

The Three Leaf Shield Anchor is a mechanical fixing anchor listed for solid base materials such as concrete, brick and stone. Its documented design uses three expansion leaves. The catalogue states applications including concrete beam fixings, wall-mounted brackets and base plates, HVAC systems and pipe clamps, heavy industrial equipment installation, and steel frame structures.
For related product selection, you can also review our Fixing Anchors range alongside this specific three-leaf model.
The table below keeps the catalogue’s original headings, units and row associations. “Hole Size” is shown in the catalogue as a two-value field, using an asterisk between the values.
| Size (Thread Diameter x Bolt Length)(mm) | Fixing length(mm) | Hole Size(mm) | Shield Length(mm) | Hole diameter of Fixture(mm) | Application torque for concrete(Nm) |
|---|---|---|---|---|---|
| M6 x 50 | 10 | 12 * 50 | 45 | 6.5 | 6.5 |
| M8 x 60 | 10 | 14 * 55 | 50 | 9 | 15 |
| M10 x 70 | 25 | 16 * 62 | 60 | 11 | 27 |
| M12 x 90 | 10 | 20 * 75 | 75 | 13 | 50 |
| M16 x 125 | 15 | 25 * 110 | 110 | 17 | 120 |
The catalogue notes that measurements are subject to tolerances wherever applicable.
Size: The size combines the thread diameter with the bolt length, such as M10 x 70. Start with this field when matching the anchor to the threaded fixing requirement in your project documentation.
Fixing length: This is the catalogue value associated with the selected size. Keep it linked to the same row rather than applying one size’s value to another.
Hole Size: The catalogue records this as a two-value dimension, for example 16 * 62 for the M10 x 70 row. Use the complete field when reviewing the catalogue specification.
Shield Length and Hole diameter of Fixture: These fields describe additional dimensional relationships for the anchor and the fixture opening. For example, the M16 x 125 row lists a shield length of 110 mm and a fixture-hole diameter of 17 mm.
Application torque for concrete: This is the catalogue’s torque value for concrete application, expressed in Nm. It is an installation-related specification and is separate from a load-capacity rating; the catalogue table does not provide a load-capacity value.
Ferry International lists the Three Leaf Shield Anchor for concrete beam fixings, wall-mounted brackets and base plates, HVAC systems and pipe clamps, heavy industrial equipment installation, and steel frame structures. These entries help you identify the catalogue’s intended fixing contexts when reviewing the product for construction, mechanical or industrial work.
The listed base-material context is solid concrete, brick and stone. The catalogue describes the anchor as a fixing solution for these solid materials rather than as a universal fixing for every substrate or project condition.
Begin by identifying the required thread diameter and bolt length, then select the matching catalogue row. Review the complete row together: fixing length, hole size, shield length, fixture-hole diameter and concrete application torque are associated with that specific size.
For example, the catalogue identifies M6 x 50, M8 x 60, M10 x 70, M12 x 90 and M16 x 125 as separate options. The documented table gives each option different dimensional values and torque values, so do not treat the range as a single interchangeable specification.
Send us your required catalogue size and quantity for a bulk quotation through WhatsApp.
The catalogue lists M6 x 50, M8 x 60, M10 x 70, M12 x 90 and M16 x 125.
Each row includes the size, fixing length, hole size, shield length, hole diameter of the fixture and application torque for concrete.
It is the catalogue’s application torque value for concrete, expressed in Nm. It is separate from a load-capacity rating.
The stated applications include concrete beam fixings, wall-mounted brackets and base plates, HVAC systems and pipe clamps, heavy industrial equipment installation, and steel frame structures. The listed base materials are concrete, brick and stone.
