Drop-In Anchor vs J-Hook Anchor Fasteners
Choosing the right type of concrete fastener is crucial for the durability, safety, and long-term reliability of your construction or infrastructure project. Two of the most common anchor systems are Drop-In Anchors and J-Hook Anchor Fasteners — each with its specific applications, technical requirements, and advantages.
In this guide, we provide a detailed comparison to help engineers, contractors, and procurement managers make informed decisions. We also include technical specifications, use cases, and expert tips to ensure you choose the right fastener for your next project.
📊 According to Global Construction Review, over 60% of anchor bolt failures occur due to incorrect selection or improper installation — making it critical to understand your options. (Source)
Drop-In Anchors are female-threaded expansion anchors designed for solid concrete installations. They are installed flush with the concrete surface and accept a machine-threaded bolt or rod.
| Size | Anchor Length (mm) | Thread Length (mm) |
|---|---|---|
| M6 | 25 | 11 |
| M8 | 30 | 14 |
| M10 | 40 | 17 |
| M12 | 50 | 20 |
| M16 | 65 | 25 |

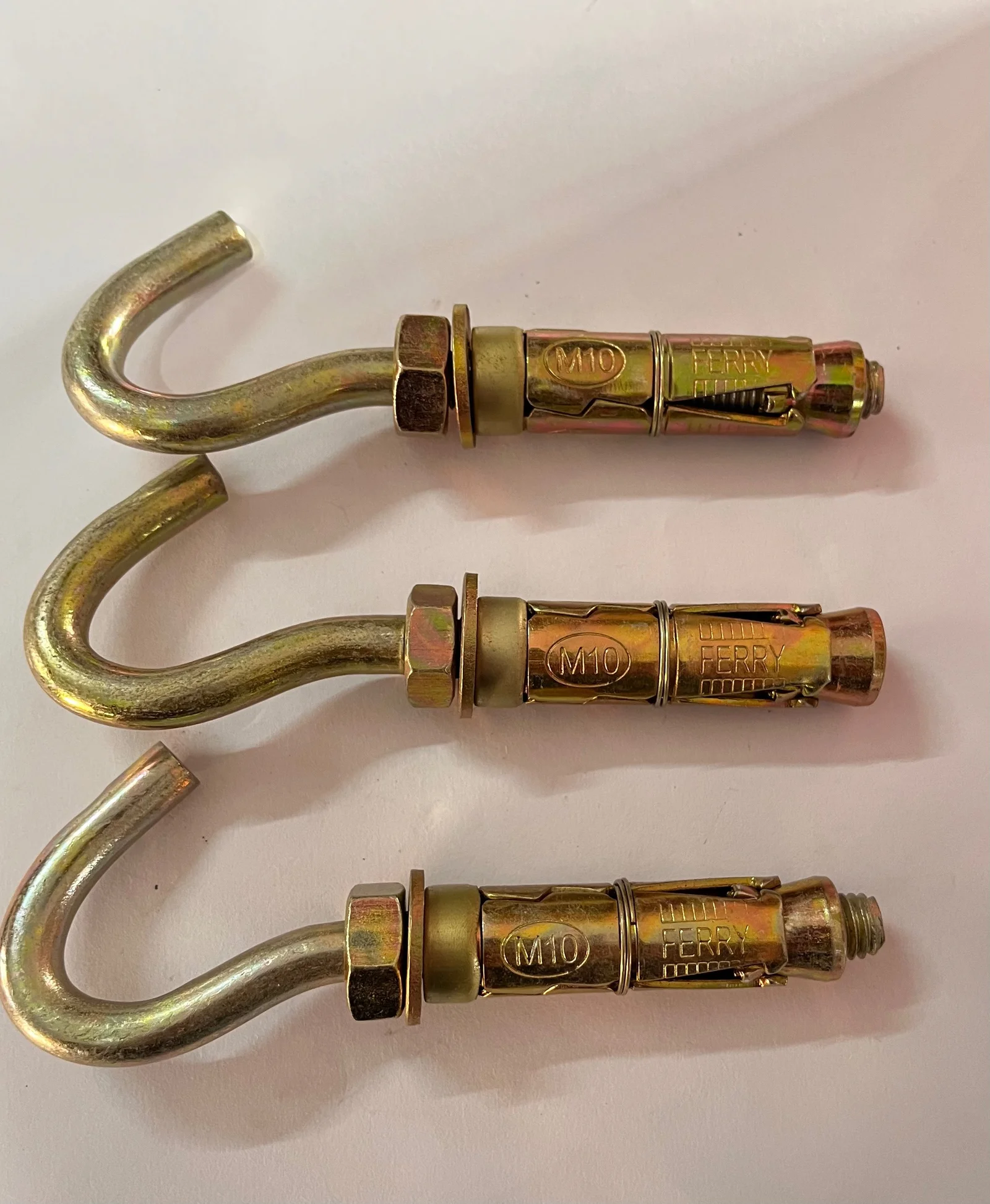

J-Hook Anchors are J-shaped embedded bolts typically used in cast-in-place or post-installed applications. Their hook design provides excellent grip within concrete, making them ideal for tension loads.
| Size | Length (mm) | Hole Diameter (mm) | Torque (Nm) |
|---|---|---|---|
| M6 | 50 | 12 | 8 |
| M8 | 60 | 14 | 15 |
| M10 | 70 | 16 | 30 |
| M12 | 95 | 20 | 40 |
| Feature | Drop-In Anchor | J-Hook Anchor |
|---|---|---|
| Installation Surface | Solid Concrete | Concrete (pre- or post-pour) |
| Load Type | Heavy static & dynamic | Medium static |
| Thread Type | Internal (female) | External (male) |
| Application Style | Flush mount with internal threading | Protrudes from surface for attachments |
| Installation Method | Requires hammer drill & setting tool | Cast-in-place or epoxy fix |
| Adjustability | High rod can be changed | Low – fixed in concrete |
| Reusability | Yes (replace threaded rod) | No |
| Price Range | ₹₹₹ | ₹₹ |
In industrial projects, it's common to use Drop-In Anchors for suspended systems and J-Hook Fasteners for embedded base supports. Combining both improves functionality and cost-efficiency.
🏗️ Case Study: In a 2023 solar power plant in Gujarat, engineers used M12 Drop-In Anchors for inverter racks and J-Hook Anchors for fencing systems — ensuring both reliability and installation speed. (Source)
Want to keep these sizes handy? Download our Anchor Bolt Technical Chart (PDF format) for M6 to M20 sizes.
_1762263150.jpg)
Whether you're in India or the Middle East, Ferry International supplies both anchor types with:
Choosing the correct anchor is more than just a technical decision — it’s a safety investment. We hope this guide helped you understand the difference between Drop-In Anchors and J-Hook Fasteners. If you’re still unsure, reach out to our team. We’re here to help you choose, customise, and supply exactly what your project needs.
Ferry International – India’s Trusted Anchor Bolt Manufacturer Since 1957
www.ferry-international.com
