Pipe Clamp Size Chart PDF – Rubber Lined, U Clamp & Clevis Hanger Dimensions | Ferry International
Selecting the correct pipe clamp is one of the most critical steps in any piping, HVAC, or firefighting project. A clamp that fits accurately ensures pipe alignment, absorbs vibration, and prevents mechanical stress or leaks.
Ferry International, based in Ghaziabad (Delhi-NCR), manufactures and supplies a comprehensive range of pipe clamps, hangers, and supports used throughout India and internationally. Our in-house facility produces rubber-lined clamps, U-clamps, sprinkler clamps, cable clamps, and clevis hangers, all of which are tested for torque, coating, and dimensional accuracy.
Download the Pipe Clamp Size Chart PDF below to check available sizes, ranges, and thread connections for your next project.
Download Now: Ferry International Pipe Clamp Catalogue (PDF)
This catalogue includes:
Each page contains product photos, key features, and detailed technical tables.
A pipe clamp is a mechanical support device used to secure pipes, conduits, or cables to walls, ceilings, or other structures. It prevents vibration, sagging, and movement caused by thermal expansion or flow pressure.
| Industry | Application Area |
|---|---|
| HVAC & MEP Contractors | Chilled water, ducting, drainage lines |
| Fire-Fighting Systems | Sprinkler pipelines and vertical risers |
| Plumbing Contractors | Sanitary and water supply installations |
| Electrical Companies | Cable tray and conduit management |
| EPC & Industrial Projects | Refineries, power, solar, manufacturing plants |
Delhi-NCR houses some of the largest mechanical and civil contractors in India, and most rely on locally manufactured pipe clamps for fast supply and customization.
| Product Type | Description | Material / Finish | Thread / Rod Size | Typical Use |
|---|---|---|---|---|
| Rubber-Lined Split Clamp | Two-piece clamp with EPDM lining to reduce vibration and noise | Mild Steel / Zinc / HDG / SS | M8 / M10 | HVAC and plumbing lines |
| Sprinkler Clamp | Quick-fit clamp for fire sprinkler pipelines | Galvanized Steel | 10 mm rod | Fire-fighting systems |
| Cable Clamp | Compact clamp for cable and conduit routing | SS / MS / EPDM lined | Screw mount | Electrical and data cables |
| U Clamp | U-shaped bolt with nuts and washers for heavy pipes | MS / HDG / SS | Nut-Bolt | Plumbing and solar systems |
| Clevis Hanger | Adjustable hanger for suspended vertical support | HDG / SS | 3/8″–5/8″ rods | Industrial piping and HVAC systems |

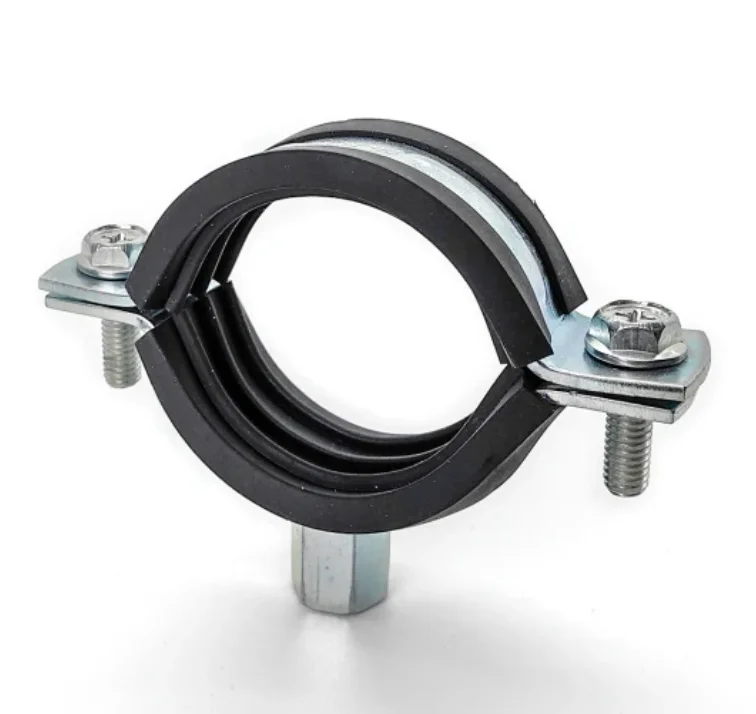

_1761572839.webp)
| Range (mm) | Connection Nut Size |
|---|---|
| 17–20 | M8/M10 |
| 20–25 | M8/M10 |
| 26–30 | M8/M10 |
| 32–36 | M8/M10 |
| 38–44 | M8/M10 |
| 47–51 | M8/M10 |
| 53–58 | M8/M10 |
| 60–64 | M8/M10 |
| 63–67 | M8/M10 |
| 74–80 | M8/M10 |
| 81–86 | M8/M10 |
| 87–92 | M8/M10 |
| 107–112 | M8/M10 |
| 113–118 | M8/M10 |
| 160–167 | M8/M10 |
| 200–212 | M8/M10 |

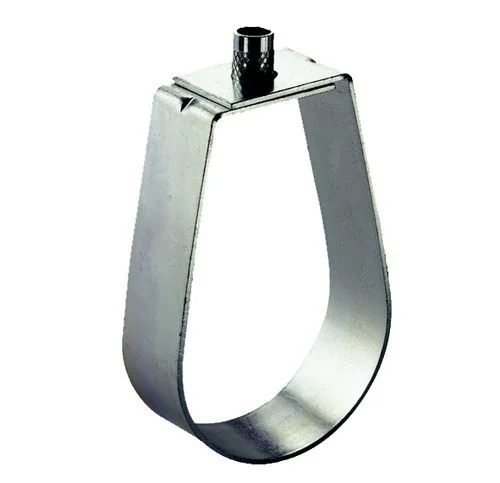

_1761572891.webp)
| Size (inch) | Rod Size (mm) |
|---|---|
| ½ | 10 |
| ¾ | 10 |
| 1 | 10 |
| 1¼ | 10 |
| 1½ | 10 |
| 2 | 10 |
| 2½ | 10 |
| 3 | 10 |
| 4 | 10 |
| 6 | 10 |
| 8 | 12 |

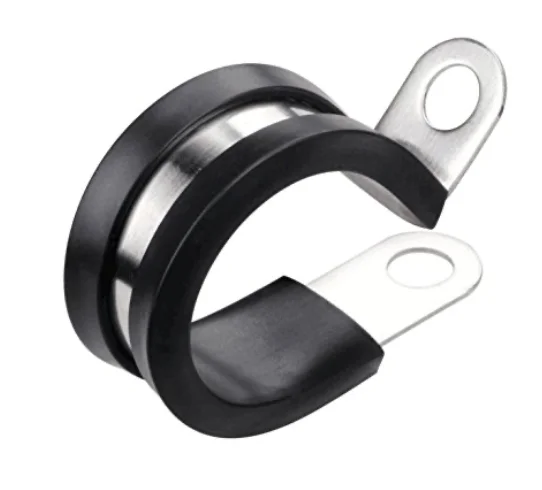

_1761572937.webp)
| Size (inch) | Inner Diameter (inch) | Slotted Hole (inch) | Hole Diameter (inch) |
|---|---|---|---|
| ½ | 0.500 | 0.375 | 0.268 |
| ¾ | 0.750 | 0.375 | 0.268 |
| 1 | 1.000 | 0.375 | 0.268 |
| ⅜ | 0.375 | 0.375 | 0.268 |
| ⅝ | 0.625 | 0.375 | 0.268 |

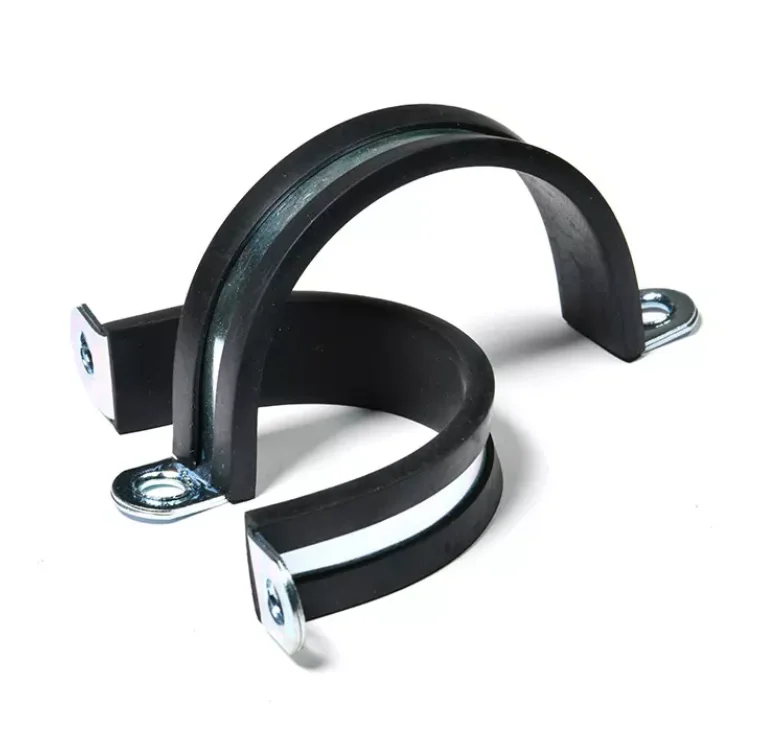

_1761572949.webp)
| Size (inch) | Diameter (mm) | Typical Weight (g) |
|---|---|---|
| ¾ | 19 | 50 |
| 1 | 25 | 75 |
| 1¼ | 32 | 100 |
| 1½ | 38 | 120 |
| 2 | 50 | 150 |
| 2½ | 63 | 200 |
| 3 | 76 | 250 |
| 4 | 102 | 350 |
| 6 | 152 | 500 |

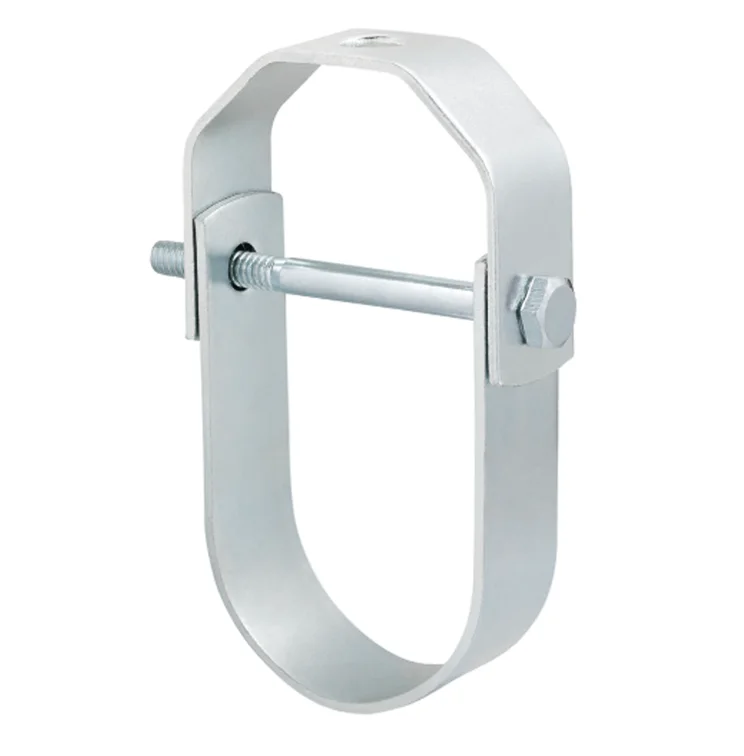

_1761572960.webp)
| Size (inch) | Recommended Load (kN, Max.) |
|---|---|
| ¾ | 2.71 |
| 1 | 3.24 |
| 1¼ | 3.24 |
| 1½ | 3.24 |
| 2 | 3.24 |
| 2½ | 6.00 |
| 3 | 6.00 |
| 4 | 6.36 |
| 6 | 8.63 |
Pipe Size and Outer Diameter (OD): Always match the clamp range with the actual pipe OD.
Material and Finish:
1. What is the standard connection for most pipe clamps?
Most clamps use M8/M10 threaded connections for mounting rods.
2. Which finish is best for outdoor projects?
Hot-Dip Galvanized (HDG) or Stainless-Steel 304/316 for corrosion resistance.
3. Can I order custom-size clamps?
Yes. Ferry International manufactures clamps as per the drawing or special OD range.
4. Are rubber-lined clamps required in HVAC systems?
Yes, the EPDM lining minimizes vibration and prevents damage to insulation.
5. How can I get a technical quote?
Send your drawing or specification to ferryinternational11@gmail.com for a prompt quotation.
