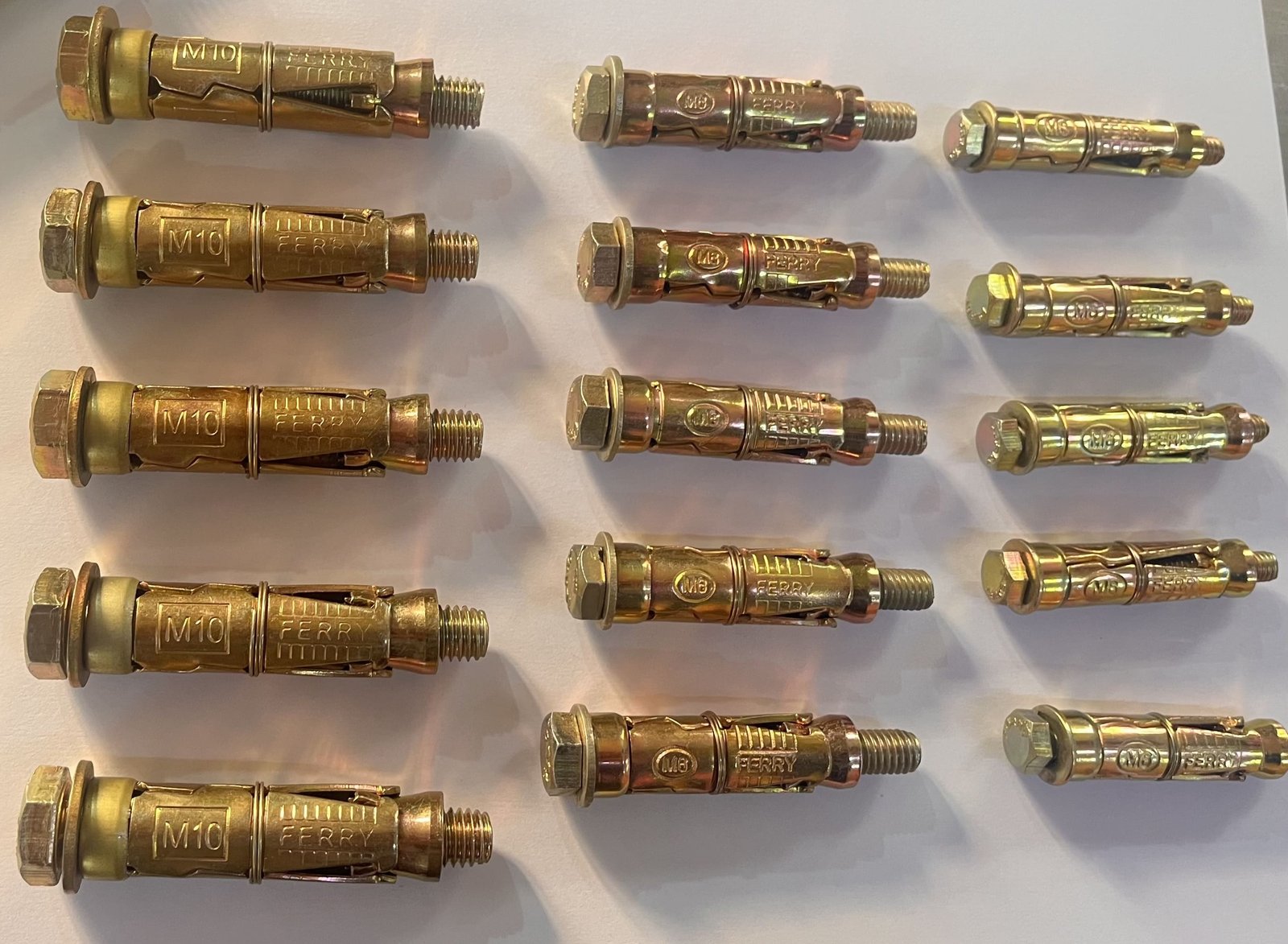

Three Leaf Shield Anchor

Three Leaf Shield Anchor

The FERRY three-leaf anchor is a high-quality, heavy-duty fastening solution designed for secure and stable anchoring in various construction and industrial applications.

Key Features :

  • Quick and simple installation process.
  • Provides enhanced grip and stability.
  • Available in multiple sizes to suit various applications.

Request Callback

Order In Bulk

Need Help ?

Our Client Care Managers Are On Call 24/7 To Answer Your Question.

Description

Available Sizes:

Size

(Thread Diameter x  Bolt Length)

(mm)

Fixing length

(mm)

Hole Size

(mm)

Shield Length

(mm)

Hole diameter of Fixture

(mm)

Application torque for concrete

(Nm)

M6 x 50

10

12 * 50

45

6.5

6.5

M8 x 60

10

14 * 55

50

9

15

M10 x 70

25

16 * 62

60

11

27

M12 x 90

10

20 * 75

75

13

50

M16 x 125

15

25 * 110

110

17

120

NOTE:  Measurements are subject to tolerances wherever applicable.
